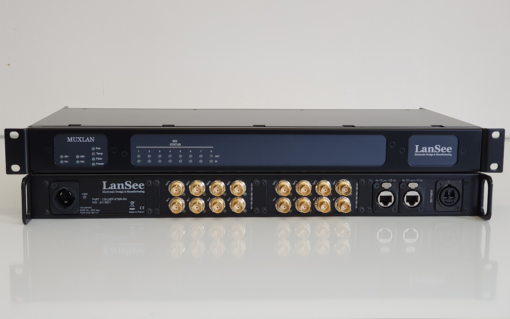

Presented in a 19″ rack, 200mm deep (excluding connectors and handles), anti-glare black. Height 1U, 2U or 3U depending on configuration.
Protective handles for connectors.
Built-in 100-240VAC 50/60Hz power supply. Universal IEC C14 power socket. Other connectors available upon request.
Final rack configuration on request by choosing from the following transport functions:
– 3G-SDI digital video (SD/HD/3G)
– 12G-SDI digital video (SD/HD/3G/6G/12G)
– CVBS Analog Video – Analog Sync (G/L) Black-Burst & Tri-Level
– Balanced analog audio
– Digital Graphics Video (HDMI)
Example models: CSEF-8T8R-RA:
- 8 x 3G-SDI IN + 8 x 3G-SDI OUT + LAN – 1U rack CS2EF-4T4R-RA
- 4 x 3G-SDI IN + 4 x 3G-SDI OUT + 2 x LAN – 1U rack CSG2EF-6T6R-RA
- 6 x 3G-SDI IN + 6 x 3G-SDI OUT + G/L + 2 x LAN – 1U Rack CS2A2EF-4T4R-RA
- 4 x 3G-SDI IN + 4 x 3G-SDI OUT + 2 audio IN + 2 audio OUT + 2 x LAN – 1U Rack CSU2EF-8T8R-RA
- 8 x 12G-SDI IN + 8 x 12G-SDI OUT + 2 x LAN – Rack 1U CSU8A2EF-14T2R-2RA
- 14 x 12G-SDI IN + 2 x 12G-SDI OUT + 8 audio IN + 8 audio OUT + 2 x LAN – 2U rack CSU8A2EF-2T14R-2RA: 2 x 12G-SDI IN + 14 x 12G-SDI OUT + 8 audio IN + 8 audio OUT + 2 x LAN – 2U rack
