LanSee – Tidy Box

Fiber Optic Extender

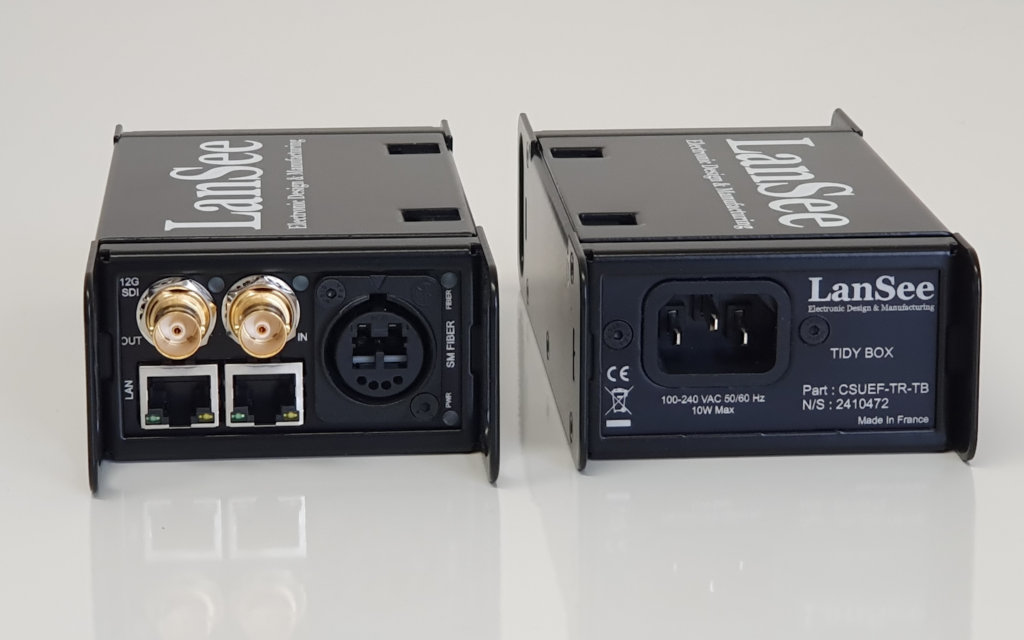

Ultra-rugged, black anti-glare black painted housing with protective connector handles, this fiber optic extender box comes in at 130x90x45mm (excluding connectors and handles). Offering an integrated 100-240VAC 50/60Hz power supply and a universal IEC C14 power socket, the Tidy Box is compatible with 2U rack-mount docking station (Tidy rack 2U).

Category: Extenders Tags: compact, Extender, Fiber Optic, LanSee Brand: LanSee

Product Description

Ultra-rugged, anti-glare black-painted housing.
Protective connector handles.
Dimensions: 130x90x45mm (excluding connectors and handles).
Integrated 100-240VAC 50/60Hz power supply. Universal IEC C14 power socket.
Compatible with 2U rack-mount docking station (Tidy rack 2U).

Example models:

CSEF-T-TB: 1 x 3G-SDI IN + LAN
CSEF-R-TB: 1 x 3G-SDI OUT + LAN
CSEF-2T-TB: 2 x 3G-SDI IN + LAN
CSEF-2R-TB: 2 x 3G-SDI OUT + LAN
CSEF-TR-TB: 1 x 3G-SDI IN + 1 x 3G-SDI OUT + LAN
CSUEF-T-TB: 1 x 12G-SDI IN + LAN
CSUEF-R-TB: 1 x 12G-SDI OUT + LAN
CSUEF-2T-TB: 2 x 12G-SDI IN + LAN
CSUEF-2R-TB: 2 x 12G-SDI OUT + LAN
CSUEF-TR-TB: 1 x 12G-SDI IN + 1 x 12G-SDI OUT + LAN

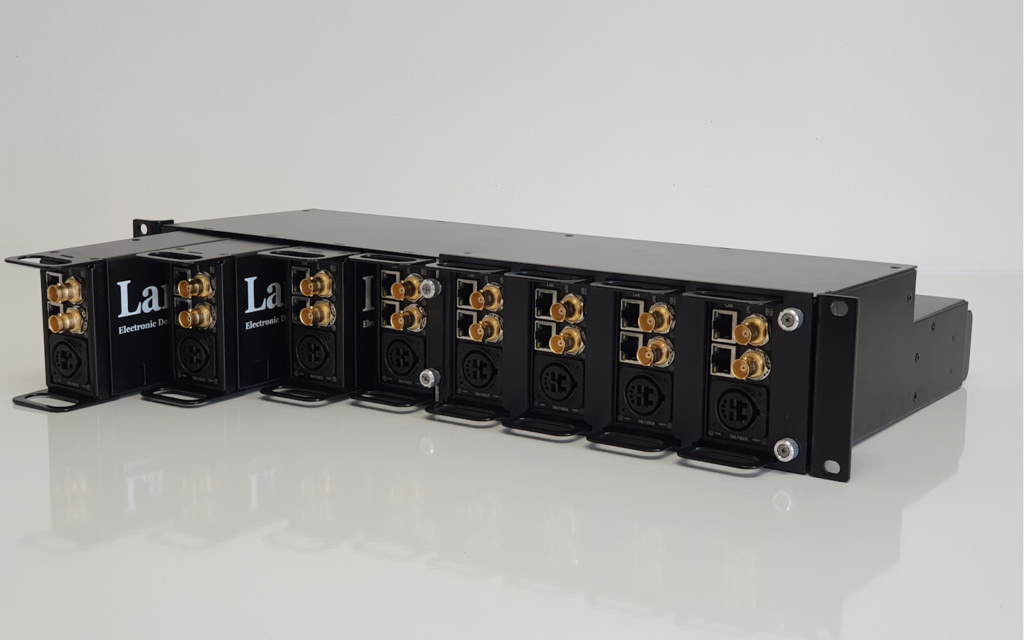

LSRACK2U-TB: Station TIDY RACK 2U 19” reception area for up to 8 TIDY BOXES

Contact Us for Pricing or to Schedule a Consultation Today!

SD, HD, 3G, 6G* and 12G* SDI compatible inputs and outputs
Automatic format detection
Light indicators for each entrance/exit
Reclocking each input and output independently
Transparent to inserted data (audio, etc.)
No latency

*: depending on versions

Auto-negotiation10/100/1000 Mbs – Half and Full Duplex
2 RJ45 ports in Switch mode
Light indicators for traffic and flow
Transparent Dante and other various IP protocols…

Single-mode duo fiber
LC/UPC Duplex Connector (Neutrik Connector Optional)
Transmission over 10km minimum
